Customizing Health Status Thresholds

You can customize the way SmartZone categorizes and displays clusters and APs shown in “Flagged Status” in the status bar.

To customize the Health dashboard, click the Settings (gear) icon. In the Settings - Health Dashboard form, click the Cluster Status or AP Status tab, and configure the following:

• Cluster Status: Configure CPU, hard disk and memory usage percentages above which the cluster will be marked as flagged status.
• AP Status: Configure the criteria upon which APs will be flagged. For more information, see the “Customizing AP Flagged Status Thresholds” section.

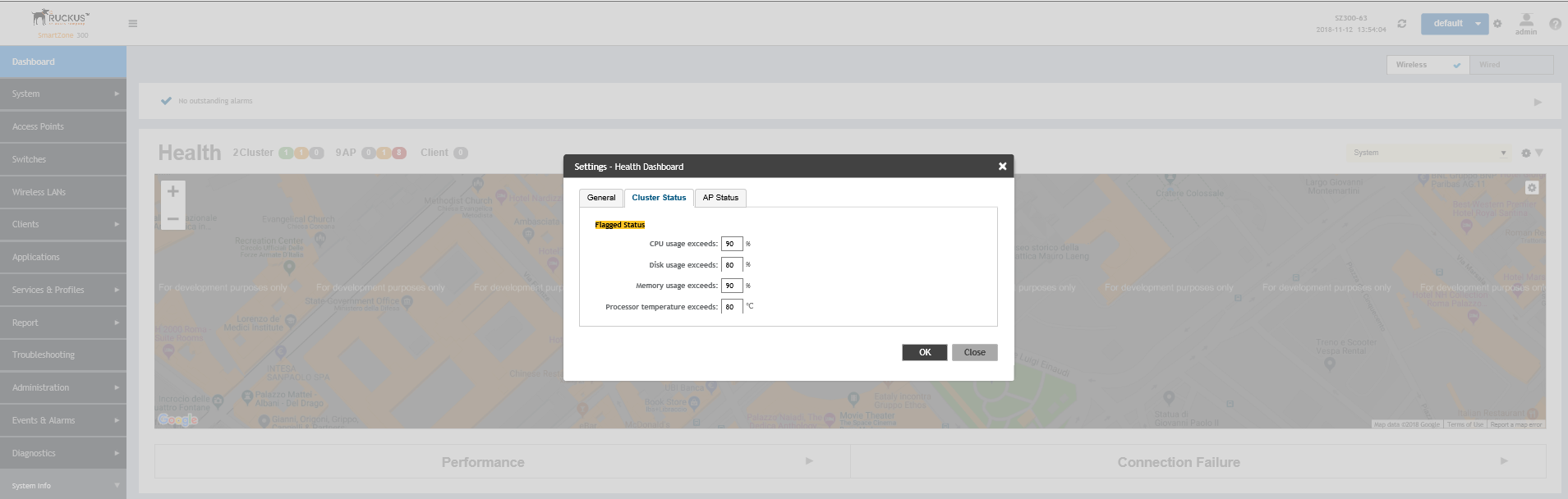

Figure 8  Setting Cluster Health Status Thresholds
