Creating Proxy Accounting AAA Servers for Standby Cluster

A proxy AAA server is used when APs send authentication/accounting messages to the controller and the controller forwards these messages to an external AAA server.

  1. Go to Services & Profiles > Accounting.
  2. Select the Proxy tab, and then select the zone for which you want to create the AAA server.
  3. Click Create.
    The Create Accounting Service page appears.

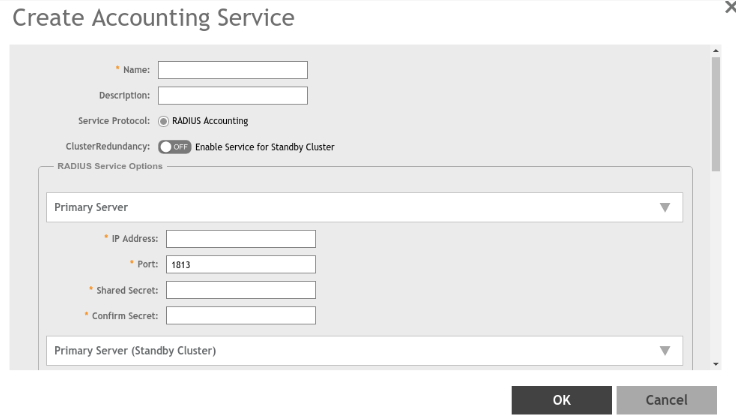

    Figure 157  Creating an Accounting Service

  4. Configure the following:
    1. Name: Type a name for the authentication service that you are adding.
    2. Description: Type a description for the authentication service.
    3. Service Protocol: By default, the RADIUS Accounting selected. For more information, see RADIUS Service Options.
    4. Cluster Redundancy: Click the Enable Service for Standby Cluster option to enable cluster redundancy.
  5. Click OK.
You have completed creating a Proxy Accounting AAA server.

For information on how to test this server, see Testing AAA Servers

NOTE
You can also edit, clone and delete an AAA server by selecting the options Configure, Clone and Delete respectively, from the Proxy tab.
