User Traffic Profiles consist of multiple traffic control rules, which can be enforced in any order you prefer (click up or down arrows to rearrange rules).
To create a user traffic control rule:
-
Click
Create. The
Create User Traffic Access Control Rule
page appears.

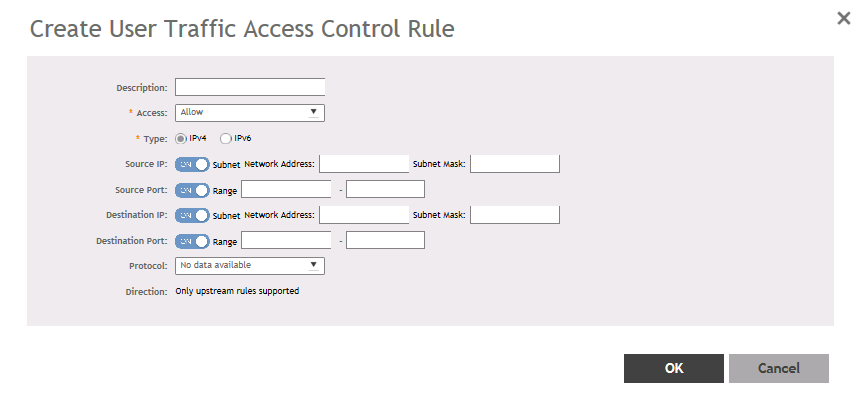

Figure 117
Creating a User Traffic Access Control Rule
-
Configure the following:
- Description: Type a short description for the user traffic rule.
- Access: Select
Allow or
Block depending on whether you want to set this rule as the default rule.
-
Type: Choose the IP version,
IPv4 or
IPv6.
- Source IP: Enable the option and specify the source
Subnet Network Address and
Subnet Mask for IPv4 option type or enter IPv6 Network address for IPv6 option type.
- Source Port: Enable the option and specify the source port to which this rule will apply. To apply this rule to a port range, type the starting and ending port numbers in the two boxes.
- Destination IP: Enable the option and specify the destination
Subnet Network Address and
Subnet Mask
for IPv4 option type or enter
IPv6 Network address for IPv6 option type.
- Destination Port: Enable the option and specify the source port to which this rule will apply. To apply this rule to a port range, type the starting and ending port numbers in the two boxes.
- Protocol: Select the network protocol to which this rule will apply. Supported protocols include TCP, UDP, UDPLITE, ICMP (ICMPv4), ICMPV6, IGMP, ESP, AH, SCTP.
-
Click
OK to save your changes.
