Enabling Flexi VPN

You can enable Flexi-VPN and limit the network resources that a UE can access. Flexi-VPN allows an administrator to customize the network topology, and is thereby able to control the network resources accessible to the end-user. This feature is only supported on vSZ-E and vSZ-H, and is enabled by purchasing the Flexi-VPN license.

Go to System > Cluster.
Select Flexi-VPN.
The Flexi-VPN status page is displayed.

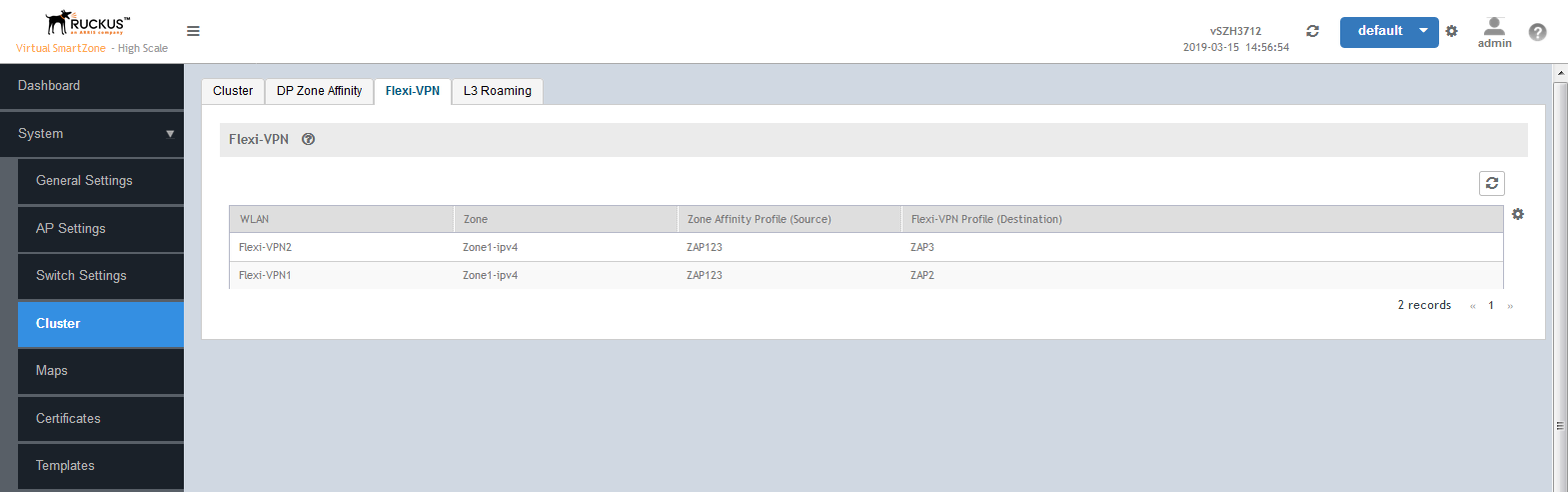

Figure 53 Enabling Flexi-VPN

NOTE
The Flexi-VPN option is available only if the Access-VLAN ID is configured in manual mode, and when VLAN Pooling, Dynamic VLAN and Core Network VLAN options, and Tunnel NAT are disabled.

NOTE
Flexi-VPN is activated when a Flexi-VPN profile is assigned to a WLAN.

NOTE
A maximum of 1024 WLAN IDs can be applied to a Flexi-VPN profile.
Flexi-VPN supports IPv4 addressing formats and Ruckus GRE tunnel protocol. It does not support IPv6 addressing formats.

The following record table indicates that the Flexi-VPN profile is successfully applied to the WLAN:

WLAN: displays the name of the WLAN
Zone: displays the name of the zone
Zone Affinity Profile: displays the name of the source data plane from which tunneled traffic starts
Flexi-VPN Profile: displays the name of the destination data plane to where the tunneled traffic terminates
