Step 2: Create a Guest Access WLAN

Guest passes are generated for specific WLANs only. Guest pass users will only be able to gain access to the WLANs for which the guest pass is generated.

1. Click Wireless LANs. The Wireless LANs page appears.
2. Click Create. The Create WLAN Configuration page appears.
3. In General Options, configure the following:
   • Name
   • SSID
   • Description
   • Zone
   • WLAN Group
4. In WLAN Usage, configure the following:
   1. In Access Network, select the Tunnel WLAN traffic through Ruckus GRE check box if you want to tunnel the traffic from this WLAN back to the controller.
   2. In Authentication Type, click Guest Access.
5. Configure the rest of the WLAN settings.
   For details on each setting, see Creating a WLAN Configuration.
6. When you finish creating a guest access WLAN, continue to Step 3: Generate a Guest Pass.

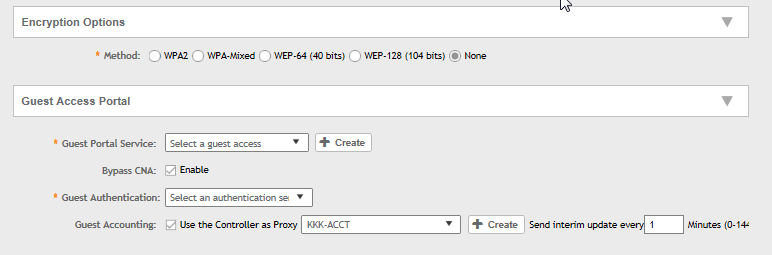

   Figure 42  Creating a WLAN for guest access only
