Uploading the Switch Firmware to the Controller

You can upload the latest available firmware to a switch from the controller, thereby upgrading the firmware version of the switch.

1. Select Administration > Upgrade.
2. Select the Switch Firmware tab.

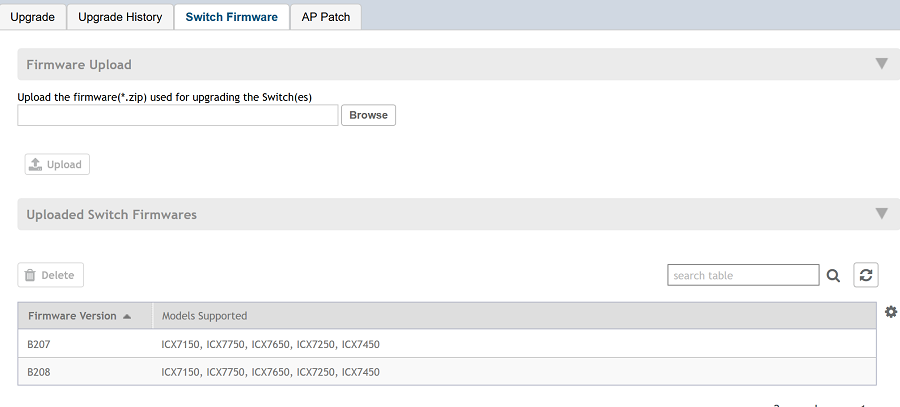

   Figure 210  Upgrading the Switch Firmware


3. In Firmware Upload click Browse to select the firmware file for upgrading the switch.
4. Click Open.
5. Click Upload. The upload status bar is displayed, and after the firmware file is uploaded, the Uploaded Switch Firmwares section is populated with the firmware version and switch models it supports.
