Creating Realm Based Proxy

An accounting profile defines the accounting policy when the controller is used as a RADIUS proxy for WLAN services.

  1. Go to Services & Profiles > Accounting.
  2. Select the Realm Based Proxy tab, and then select the zone for which you want to create the AAA server.
  3. Click Create.
    The Create Accounting Profile page appears.

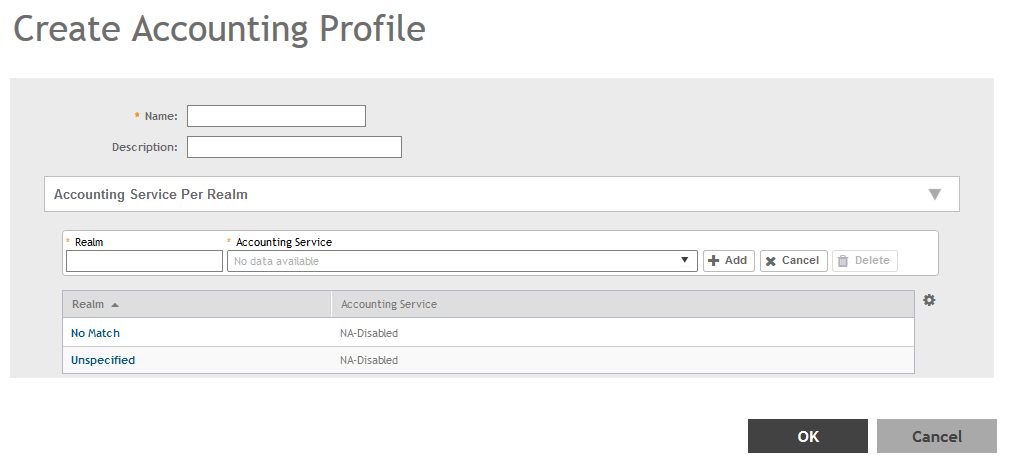

    Figure 158  Creating an Accounting Profile

  4. Configure the following:
    1. Name: Type a name for the authentication service that you are adding.
    2. Description: Type a description for the authentication service.
    3. Accounting Service per Realm: Specify the accounting service for each of the realms specified in this table. If you set the accounting service for a particular realm to NA-Disabled, then the accounting request is rejected. To create a new service click, Create and then configure Realm and Accounting Service.
  5. Click OK.
You have completed creating a Realm-based proxy Accounting AAA server.
NOTE
You can also edit, clone and delete an AAA server by selecting the options Configure, Clone and Delete respectively, from the Realm Based Proxy tab.
Parent topic: Accounting
