Enabling Ekahau and Aeroscout/Stanley RTLS Tags

To locate tag positions, SZ allows you to enable Ekahau and Aeroscout/Stanley RTLS tags.

1. Select Services and Profiles > 3rd Party Service.
2. Click the RTLS tab. The RTLS page is displayed.

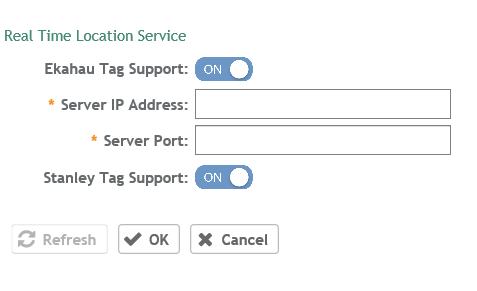

   Figure 173  Enabling Ekahau and Aeroscout/Stanley Tag Support








3. Select a zone to enable the tags.
4. To enable Ekahau tag support, set Ekahau Tag Support to ON.
5. In the Server IP Address field, enter the IP address of the server to which data is forwarded.
6. In the Server Port field, enter the server port to which data is forwarded.
7. To enable Stanley tag support, set Stanley Tag Support to ON.
8. Click OK.
