Enabling Flexi VPN

You can enable Flexi-VPN and limit the network resources that a UE can access. Flexi-VPN allows an administrator to customize the network topology, and is thereby able to control the network resources accessible to the end-user. This feature is only supported on vSZ-E and vSZ-H, and is enabled by purchasing the Flexi-VPN license.

  1. Go to System > Cluster.
  2. Select the Flexi-VPN tab.
    The page with Flexi-VPN settings appears.

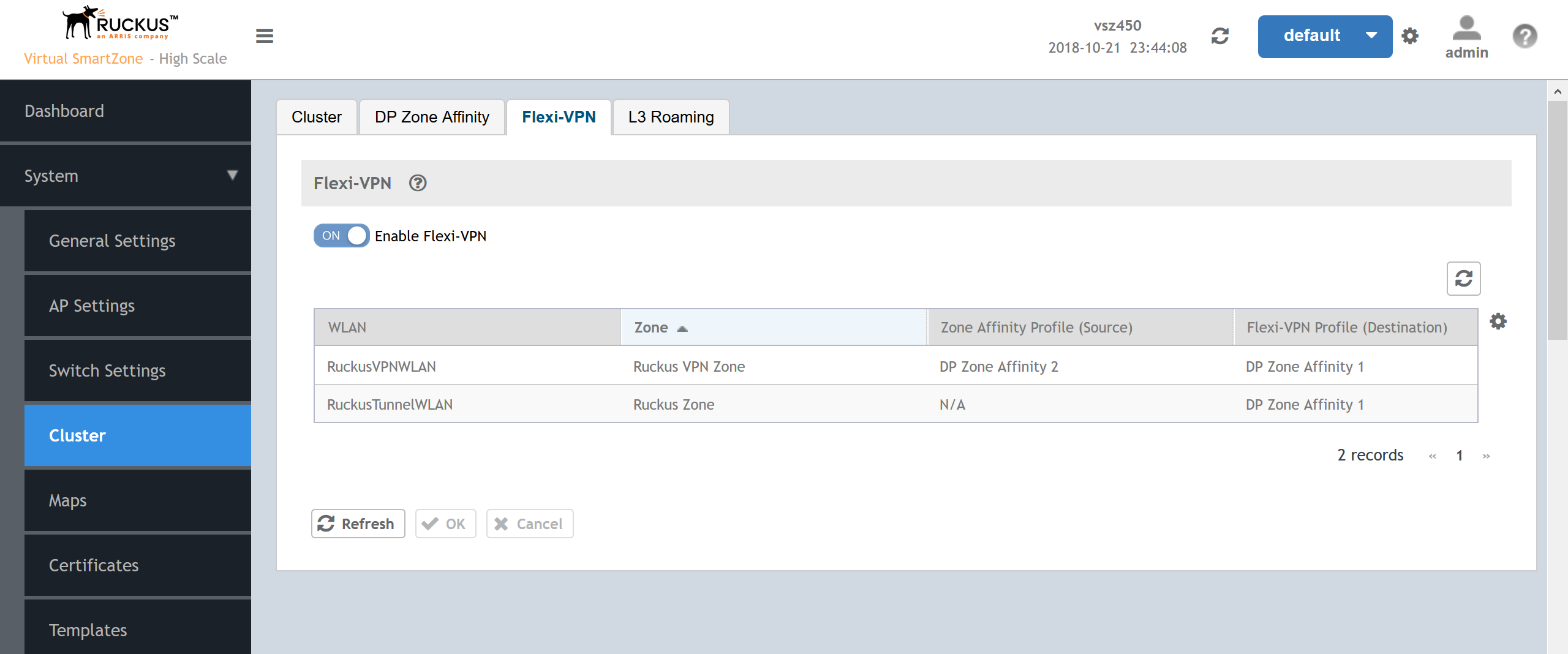

    Figure 50  Enabling Flexi-VPN

    NOTE
    The Flexi-VPN option is available only if the Access-VLAN ID is configured in manual mode, and when VLAN Pooling, Dynamic VLAN and Core Network VLAN options, and Tunnel NAT are disabled.
    NOTE
    You can only apply 1024 WLAN IDs to a Flexi-VPN profile.

    Flexi-VPN supports IPv4 addressing formats and Ruckus GRE tunnel protocol. It does not support IPv6 addressing formats.

  3. Select a virtual data plane for which you want to enable the Flexi-VPN feature, and then select the Enable Flexi-VPN check-box.
    The following information is displayed:
    • WLAN: displays the name of the WLAN
    • Zone: displays the name of the zone
    • Zone Affinity Profile: displays the name of the source data plane from which tunneled traffic starts
    • Flexi-VPN Profile: displays the name of the destination data plane to where the tunneled traffic terminates
  4. Click OK.
You have successfully enabled the Flexi-VPN feature on the selected vDP.
