Creating Time Schedules

You can control client access to the network by providing a time schedule within which the device can access the network.

1. Go to Services & Profiles > Access Control.
2. Select the Time Schedule tab, and then select the zone for which you want to create the schedule.
3. Click Create.
   The Create Time Schedule Table page appears.

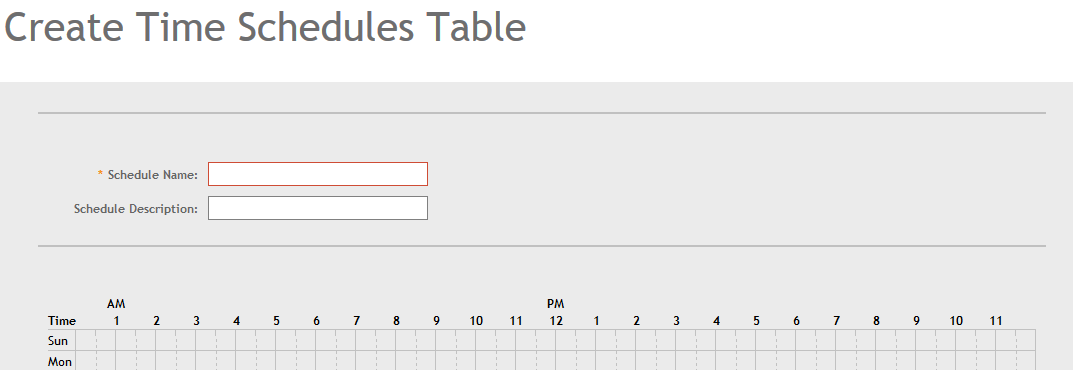

   Figure 128  Creating a Time Schedule Table






4. Configure the following:
   1. Schedule Name: Type a name for the schedule you want to create.
   2. Schedule Description: Type a short description for this schedule.
   3. Draw the schedule table.
   4. Click OK.
