Viewing Firmware History of the Switch

You can view the detailed status and result of the firmware update to a switch. You can also view a history of firmware upgrades that were previously carried out on the switch.

You must have upgraded the firmware of the switch as described in Scheduling a Firmware Upgrade

  1. From the left pane, select Switches.
    The ICX Switches page appears.
  2. Select the switch or group. Then select the Firmware History tab.
    The Firmware History tab is displayed.

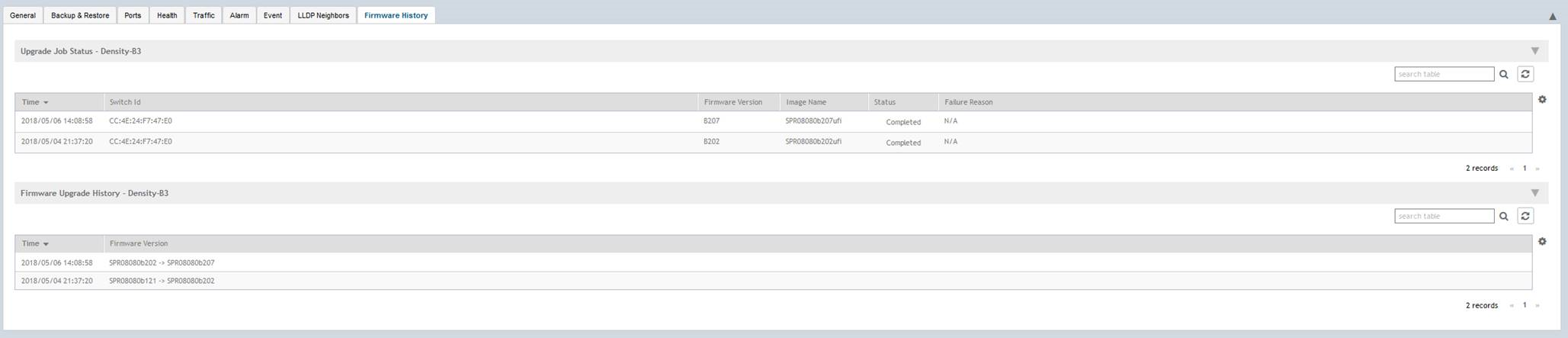

    Figure 74  Viewing Firmware History

    You can verify the status of the upgrade from the Upgrade Job Status section which displays the time, switch ID, firmware version, image name, status and failure reasons (if any) for the upgrade.

    The Firmware Upgrade History section displays the time of the pervious upgrade operations, and firmware versions to which the upgrade was done.

Parent topic: SmartZone Switch Management
