Enabling Tunnel Encryption

You can use the tunnel encryption feature to encrypt data for a private network, through a public network. This feature is available in vSZ-H and vSZ-E.

1. Go to Services & Profiles > Tunnels and Ports.
2. Select the Tunnel Encryption(DP) tab, and then select the zone for which you want to create the profile.
   The Tunnel Encryption (DP) page appears.

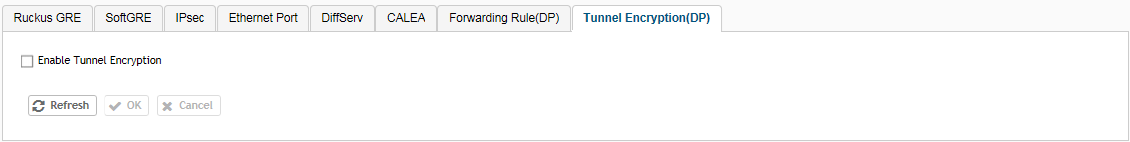

   Figure 162  Tunnel Encryption (DP)






3. Select the Enable Tunnel Encryption check-box.
4. Click OK.
