Moving the Switches between Groups

You can move the switches within any group or sub-group within the system hierarchy to manage it.

1. From the left pane, select Switches.
   The ICX Switches page appears.
2. From the ICX Switches page, select the switch that you want to move and click Move.

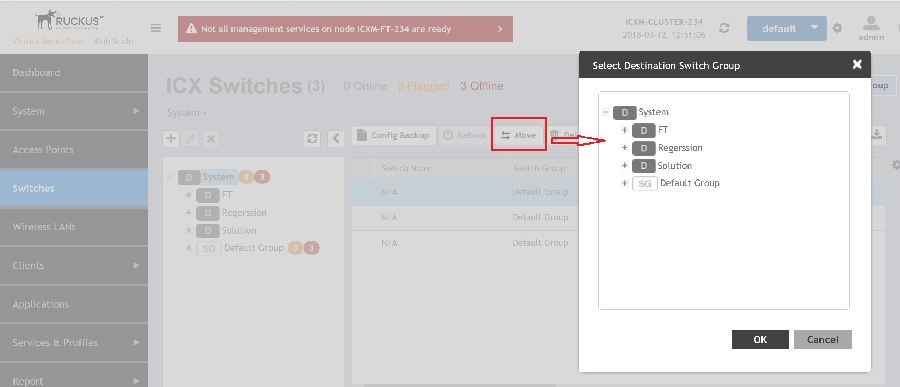

   Figure 58  Moving the switch



   The Select Destination Switch Group page appears. It displays the system hierarchy from which you can select the group under which you want to move the switch.
