Configuring Multiple Tunnels in WLANs

In WLANs where there is an option to tunnel the traffic, you can choose the tunneling profile the WLAN can use.

1. In the Wireless LANs page, from the System tree hierarchy, select the Zone where you want to create a WLAN.
2. Click Create.
   The Create WLAN Configuration page appears.

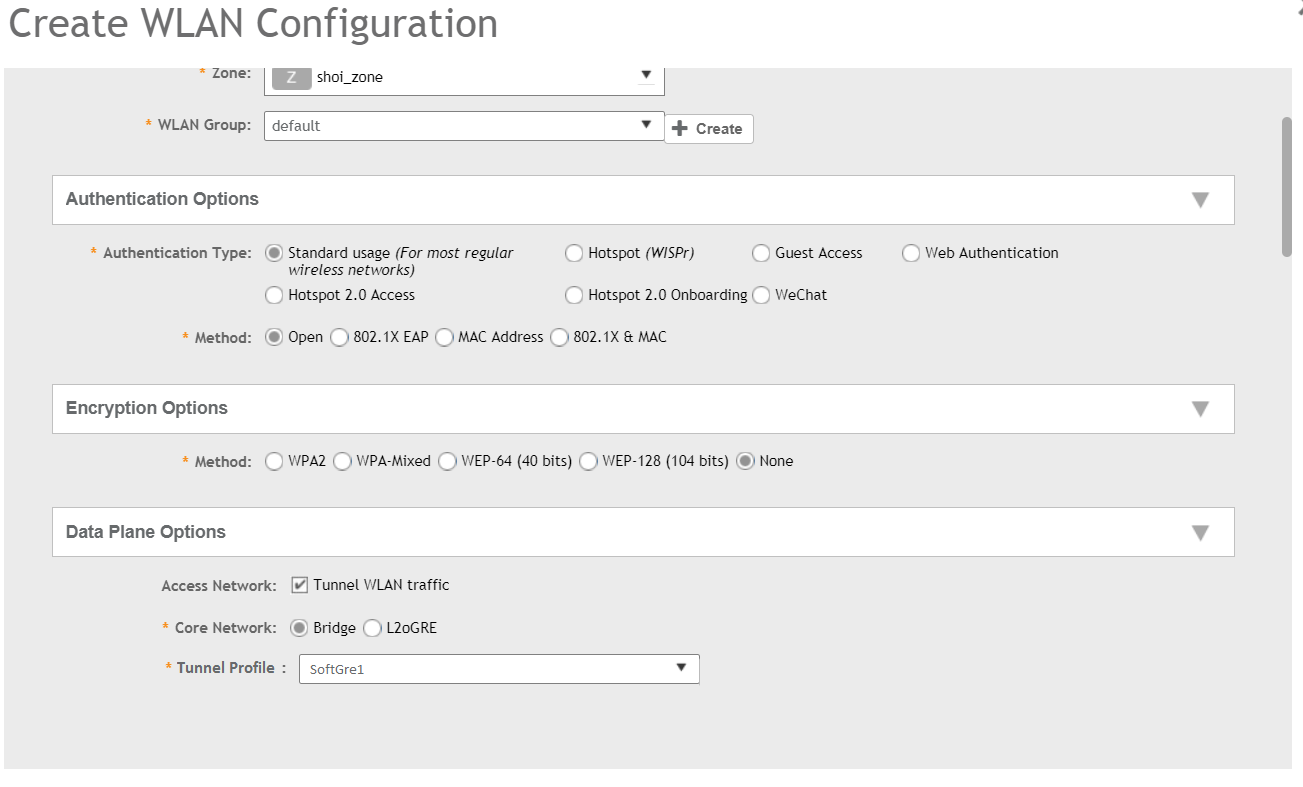

   Figure 46  Tunneling Options while Creating a WLAN Configuration


3. In the Data Plane Options section, and next to Access Network: text check the Tunnel WLAN traffic box to tunnel the data traffic to a central data plane. Clear the check box if you want APs to perform local breakouts.
4. Next to the Core Network: option, click the radio button for Bridge.
5. Next to the Tunnel Profile: option, use the drop-down menu to select one of the tunnelling profiles—either SoftGRE or Ruckus GRE.
