Creating a Proxy Accounting RadSec Service

Perform the following procedure to create a RadSec proxy accounting service that will connect to the RadSec AAA server using a TLS connection instead of TCP.

1. Select Services & Profiles > Accounting > Proxy.
2. Click Create to add a RadSec accounting service. The Create Accounting Service page is displayed.

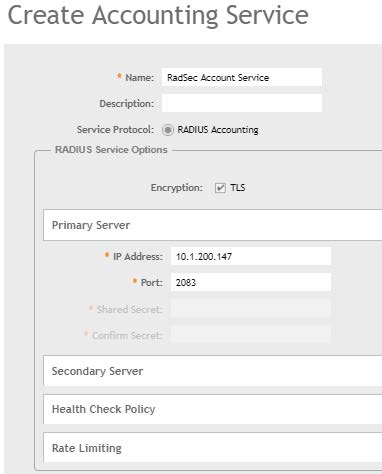

   Figure 179  Creating a Proxy RadSec Accounting Service








3. In the Name field, enter the accounting service name.
4. Select RADIUS Accounting as the service protocol.
5. Under RADIUS Service Options, select TLS for encryption.
6. Under Primary Server, complete the following steps:
   1. Enter the IP address.
   2. Enter 2083 as the port number.
7. Click Save to add the RadSec accounting service.
