Viewing Switches on the Dashboard

The wired dashboard displays detailed information about the health of the switch and graphs indicating traffic trends.

1. From the SmartZone interface, click Dashboard in the left menu. The Dashboard page is displayed.
2. Click Wired. The Wired page is displayed as shown in the following example.

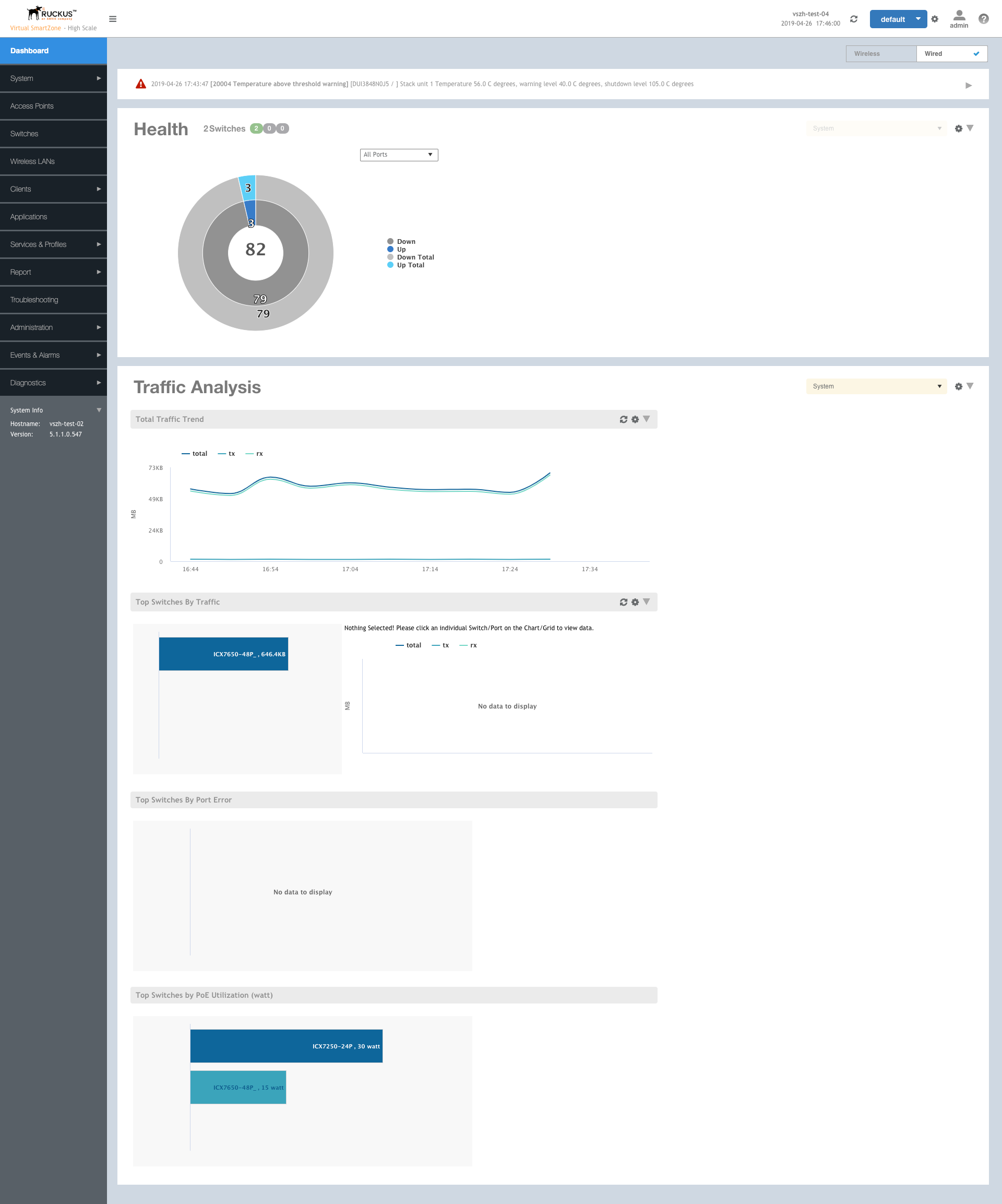

   Figure 18  Wired Devices



   The Health section displays the number of switches that are online, offline, and flagged. It also displays the number of ports by speed and indicates whether they are Up, Warning, Down, or Down By Admin.

   The Traffic Analysis section displays the following information:

   • Top switches based on traffic
   • Top ports based on traffic
   • Top switches based on port errors
   • Top switches based on PoE utilization
