Copying Configuration

If you already have a switch with the desired set of features configured, SmartZone provides an option to load the current configuration of the switch, remove unique settings like hostname, IP addresses, and so on, and copy it to one or more target switches. This procedure is applicable only if the target switches have no existing configuration.

Complete the following steps to copy configuration to one or more target switches.

  1. From the left pane, select Switches.
    The ICX Switches page appears.
  2. Select the switch and then the Configuration tab.
    Figure 78  ICX Switch Group Configuration Tab
  3. Click Copy Configuration To.
  4. Select the switch group and click OK.
  5. Edit the CLI commands to remove unique settings like IP settings and hostname and click Next.

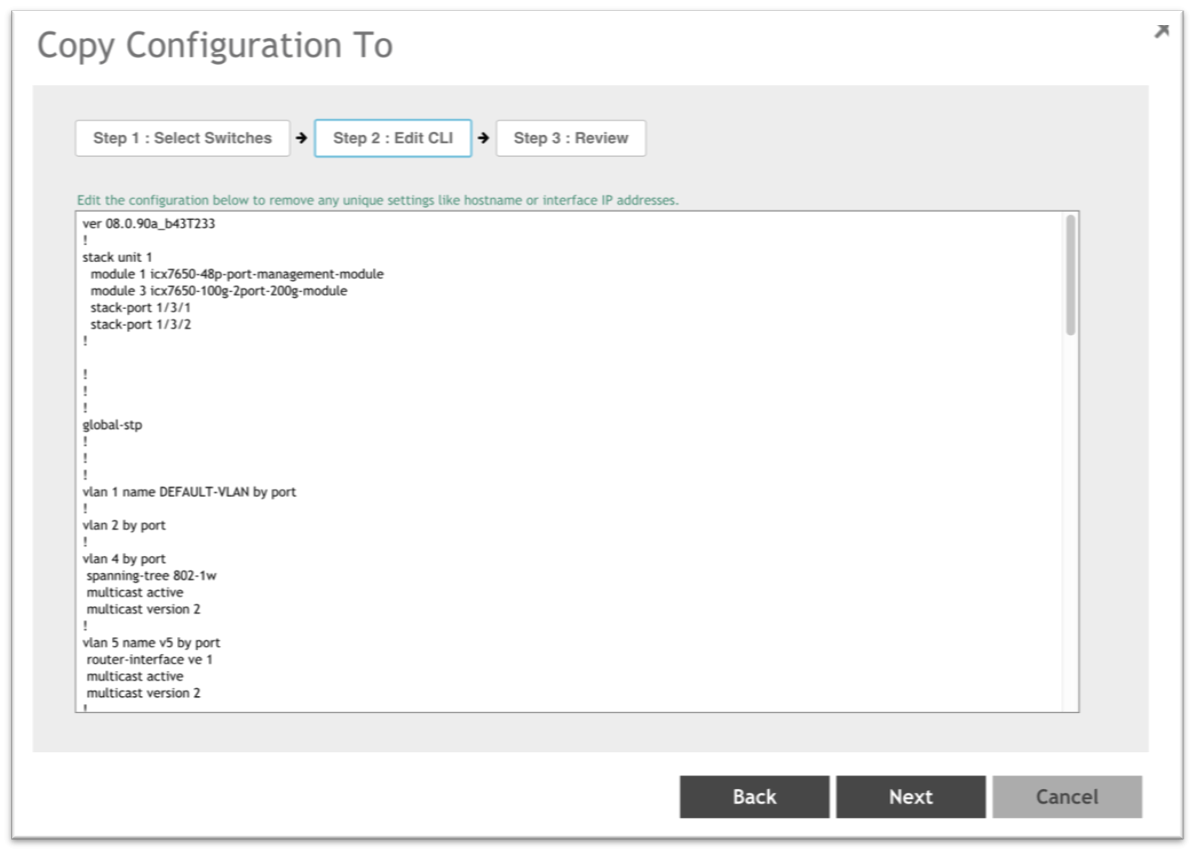

    Figure 79  Copy Configuration To - Edit CLI Page


  6. Review CLI config and click OK.
Parent topic: Switch Level Configuration
