Configuring License Bandwidth

You can assign a license bandwidth for a virtual data plane provided it is already approved. Each virtual data plane can be configured with only one bandwidth license. This feature is applicable only to virtual platforms.

  1. Go to Administration > Licenses.
  2. Select the License Bandwidth Configuration tab.
    The License Bandwidth Configuration page appears.

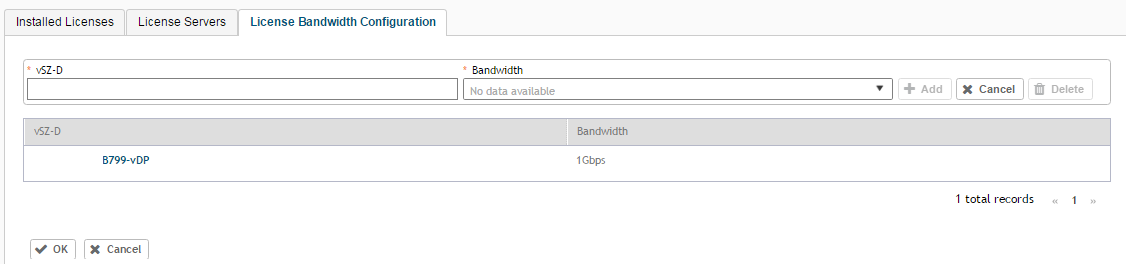

    Figure 235  License Bandwidth Configuration

  3. In vSZ-D, type the name of the virtual data plane.
  4. From the Bandwidth drop-down menu, select the license bandwidth you want to assign to the virtual data plane. Default is 1Gbps.
  5. Click Add. The vSZ-D with the assigned license bandwidth is displayed.
  6. Click OK. The message Submitting form appears, and the vSZ-D is assigned a bandwidth.
You have successfully assigned a license bandwidth to the virtual data plane.
Parent topic: Managing Licenses
