Implementing an Application Control Policy

Deploying an application control policy involves configuring a User Traffic Profile (UTP) with the policy, and then applying that profile to a WLAN.

1. Go to Services and Profiles > Access Control > User Traffic.
2. Click Create. The Create User Traffic Profile page appears.
3. Enter a Name, and optionally a Description for the UTP.
4. Under Application Recognition and Control, select an Application Policy from the drop-down list. Alternatively, click Create to create a new policy.
5. Click OK to save the UTP.
6. Go to Wireless LANs.
7. Locate the WLAN for which you want to apply the application policy, and select it from the list.
8. Click Configure. The Edit WLAN [WLAN Name] page appears.
9. Under Advanced Options, select a user traffic profile you created from the drop-down list. Alternatively, click Create to create a new UTP.
10. Click OK to save your WLAN changes.

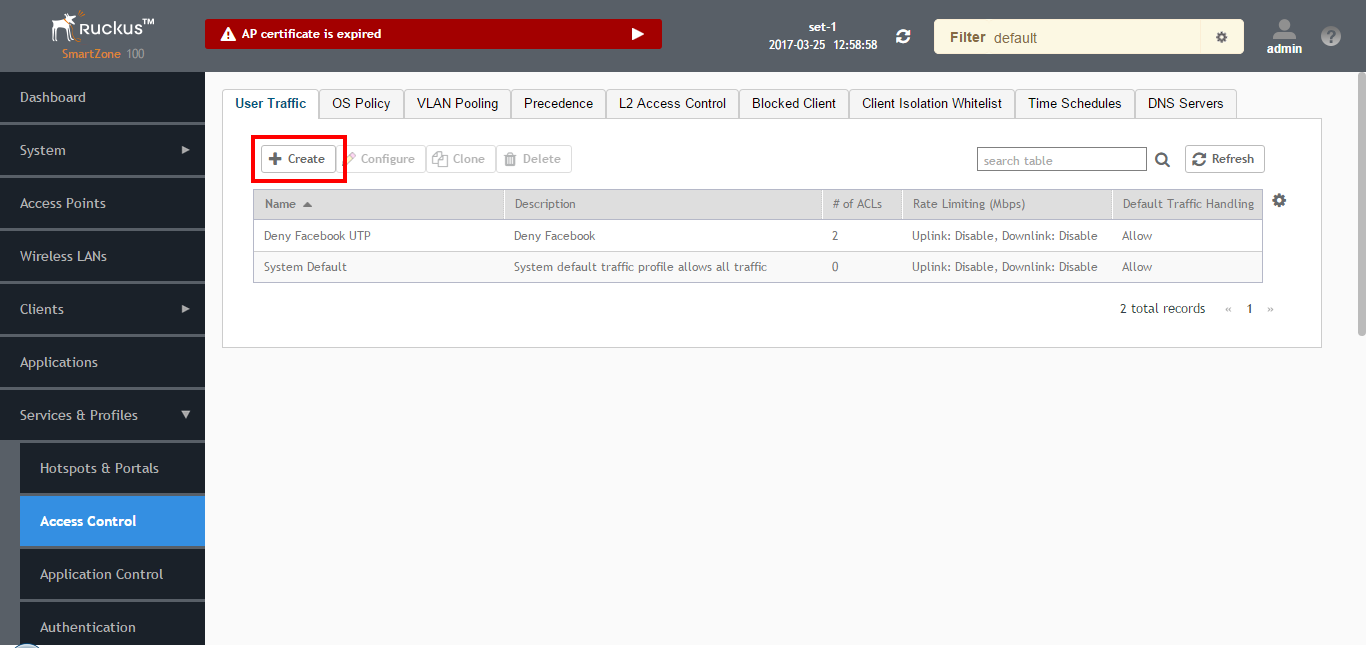

    Figure 161  Create a User Traffic Profile (UTP)

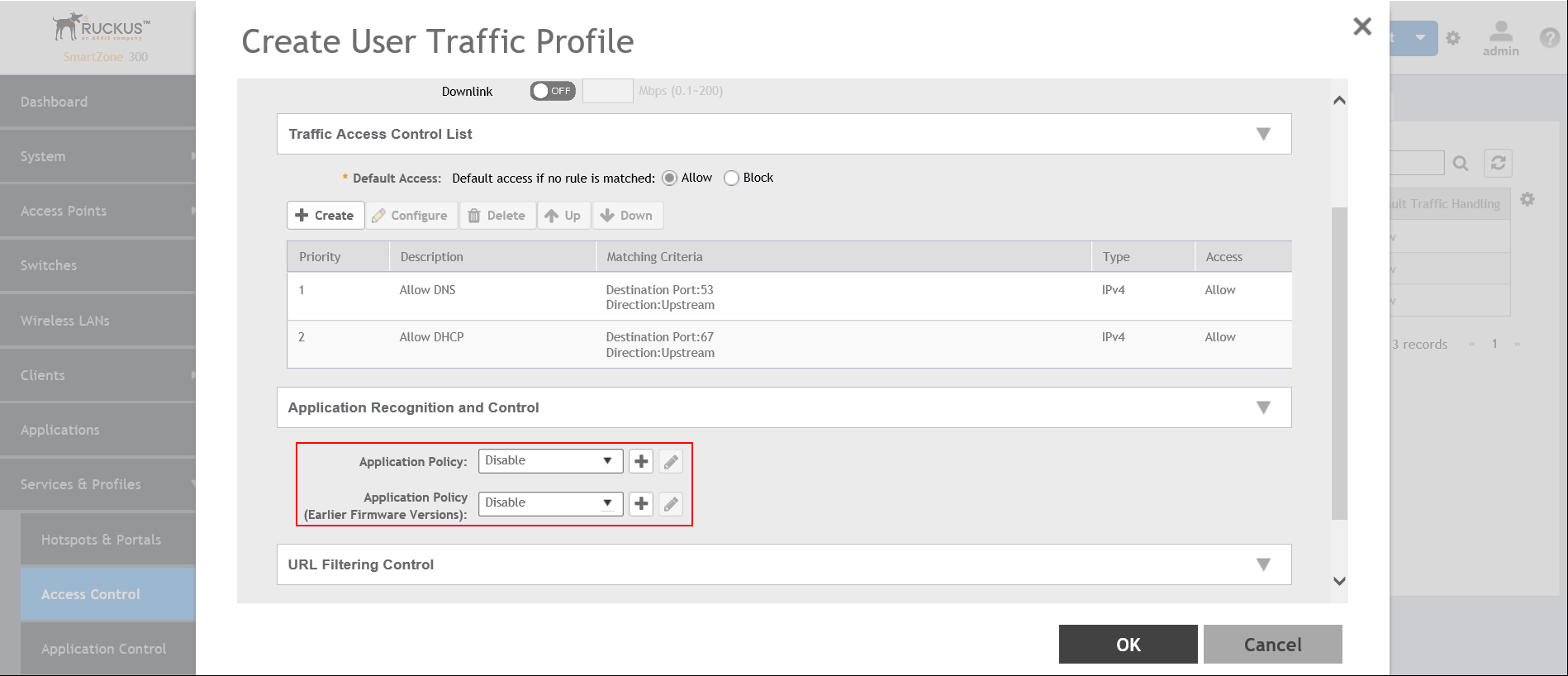

    Figure 162  Select an Application Policy to apply to this UTP

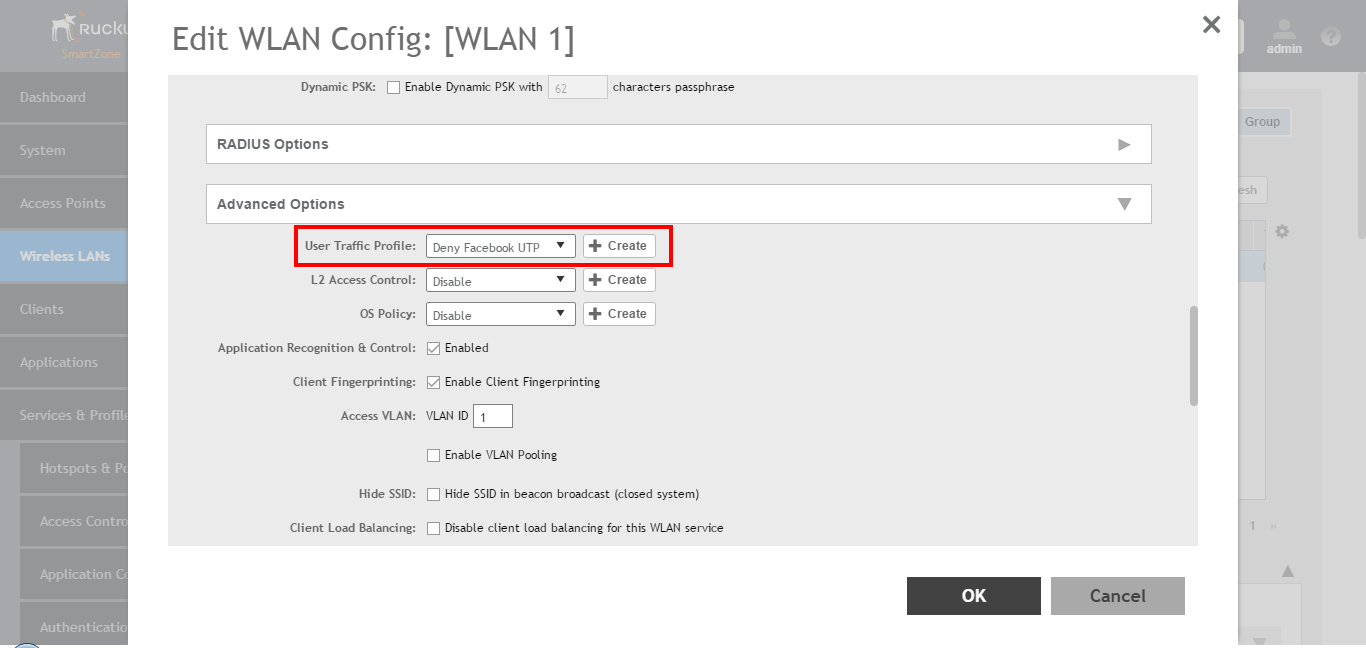

    Figure 163  Apply the UTP to a WLAN
