Configuring URL Filtering Licenses

You can configure the number of URL filtering licenses on an AP within the zone.

You can both limit the number of URL filtering licenses per zone, and also configure the AP to have unlimited licenses.

If an AP has URL filtering license enabled, then URL filtering can be enabled for all WLANs within the same zone.

If the URL filtering license is deleted in a zone, URL filtering services are disabled on all the WLANs within that zone. If you want to add the license back again, you simply have to enable URL filtering ont eh zone or WLAN.

If the license limited to the zone is specified, you cannot move or add more APs with URL filtering enabled to that zone. For example, if you have set the License limit to 3, you cannot add a fourth AP to the zone.

NOTE
Number of trial licenses for SZ100 and vSZ-E controllers is 1000.
  1. Go to Administration > Licenses.
  2. Select the URL Filtering Licenses tab.
    The URL Filtering Licenses page displays the following:

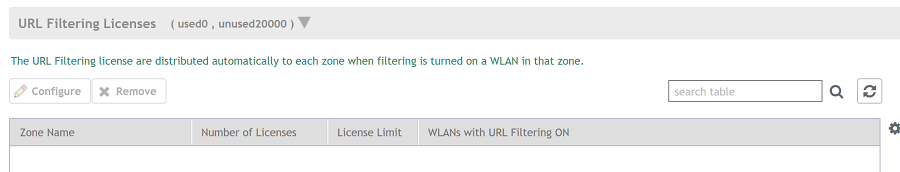

    Figure 236  URL Filtering Licenses
    • Zone Name: name of the zone within which APs are present
    • Number of Licenses: displays the total licenses allocated to the zone
    • License Limit: can be set to a value or can be Unlimited. This displays the number of APs (with URL filtering enabled) that can be accommodated within the zone.
    • WLANs with URL Filtering ON: displays all the WLANs within the zone that have the URL filtering service enabled
  3. Select the URL license and click Configure.
    The URL Filtering Licenses page appears.
  4. Configure the License Limit as appropriate for the zone.
  5. Click OK.
Parent topic: Managing Licenses
