Creating OS Policy Rules

You can create rules for every OS policy service that you create.

1. Click Create. The Create OS Policy Rule page appears.

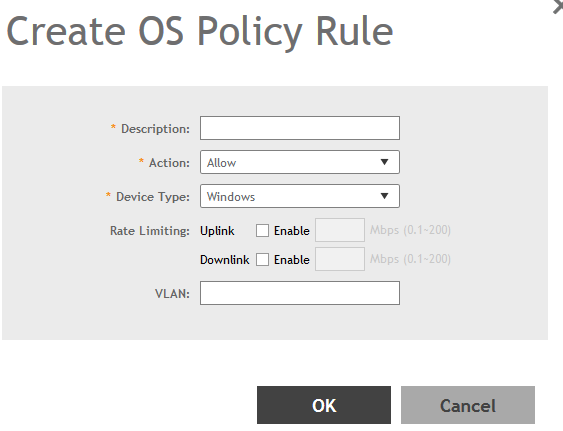

   Figure 148  Create OS Policy Rule






2. Configure the following:
   • Description: Type a short description for the rule.
   • Access: Select Allow or Block. This is the action that the system will take if the client matches any of the attributes in the rule.
   • Device Type: Select from any of the supported OS types.
   • Rate Limiting: Specify and apply rate limit values for the device.

     Select the Enable check-box to set the Uplink and Downlink rate limit values.

   • VLAN: Segment this client type into a specified VLAN (1~4094; if no value is entered, this policy does not impact device VLAN assignment).
   • Click OK.
