Creating a Proxy Authentication RadSec Service

Perform the following procedure to create a RadSec proxy authentication service that will connect to the RadSec AAA server using a TLS connection instead of TCP.

1. Select Services & Profiles > Authentication > Proxy (SZ Authenticator).
2. Click Create to add a RadSec authentication service. The Create Authentication Service page is displayed.

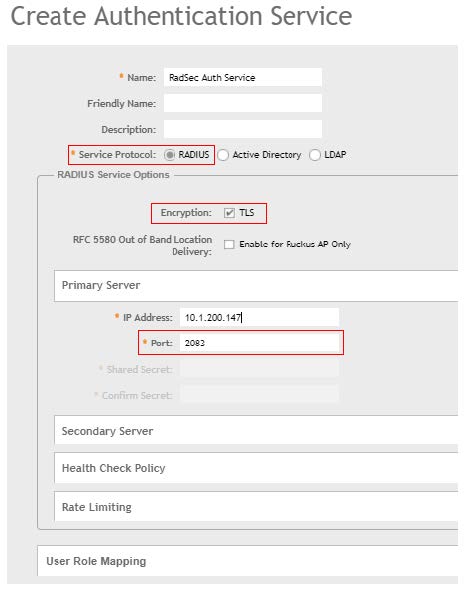

   Figure 176  Creating a Proxy RadSec Authentication Service








3. In the Name field, enter the authentication service name.
4. For Service Protocol, select RADIUS.
5. Under RADIUS Service Options, select TLS for encryption.
6. Under Primary Server, complete the following steps:
   1. Enter the IP address.
   2. Enter 2083 as the port number.
7. Click Save to add the RadSec authentication service.
