Viewing Switches on the Dashboard

The wired dashboard displays detailed information about the health of the switch and also displays traffic trends as graphs.

1. From the SmartZone interface, click Dashboard in the left menu. The Dashboard page appears.
2. Click Wired. The Wired page appears.

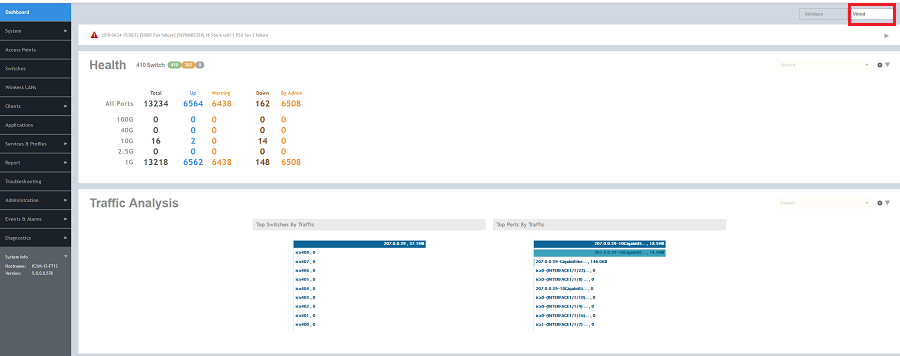

   Figure 17  Wired Devices



   The Health section displays the status of the switches by number of switches that are online, offline and flagged. It also displays the number of ports by speed, and indicates their status such as Up, Warning, Down and By Admin.

   The Traffic Analysis section displays the top switches and top ports by traffic.
