Creating an AP Zone

An AP zone (or zone) functions as a way of grouping Ruckus APs and applying settings including WLANs to these groups of Ruckus APs. Each AP zone can include up to six WLAN services.

To create an AP zone:

  1. On the menu, click Access Points. The figure below appears.

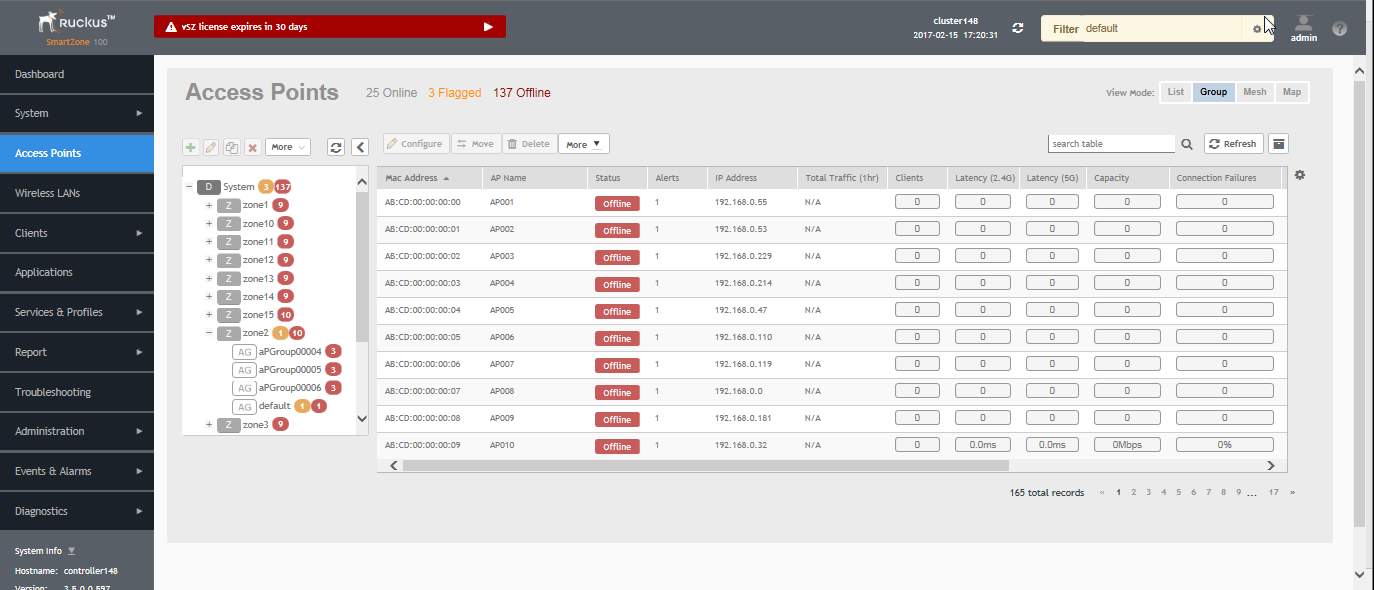

    Figure 32  Access Points


  2. From the System tree, select the location where you want to create the zone (for example, System or Domain), and then click .

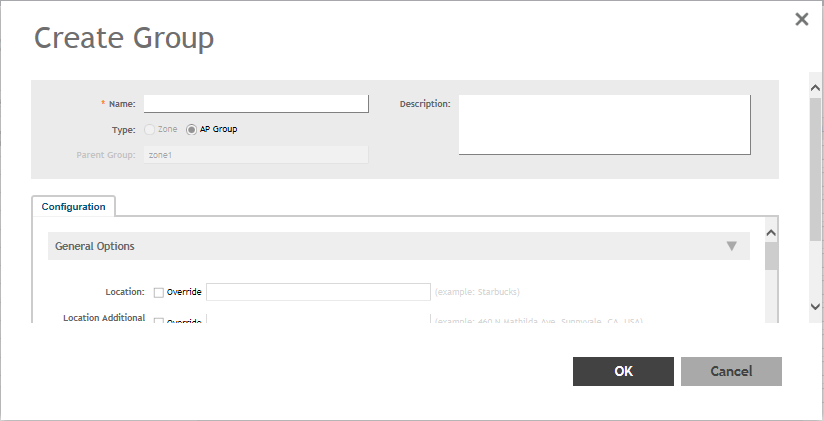

    Figure 33  Create Groups


  3. Configure the zone by completing the settings listed in the table below.
  4. Click OK.
Table 10 AP Zone Details
Field Description Your Action
Name Indicates the name of the zone/AP group. Enter a name.
Description Indicates the short description assigned to the zone or AP group. Enter a brief description
Type Indicates if you are creating a zone or an AP group. Appears by default. You can also choose the option.
Parent Group Indicates the parent AP group. Appears by default.
Configuration > General Options
AP Firmware Indicates the firmware to which it applies. Select the firmware.
Country Code Indicates the country code. Using the correct country code helps ensure that APs use only authorized radio channels. Select the country code.
Location Indicates the generic location of the zone. Enter the location.
Location Additional Information Indicates detailed location. Enter additional location information.
GPS Coordinates Indicates the geographical location. Enter the following coordinates:
  • Longitude
  • Latitude
  • Altitude
AP Admin Logon Indicates the admin logon credentials. For the Default Zone, the SZ cluster name is used as the default logon ID and password.. Enter the Logon ID and Password.
AP Time Zone Indicates the time zone that applies. Select a time zone, and the enter the details as required.
AP IP Mode Indicates the IP version that applies. Select the IP version. IPv6, IPv4 and dual addressing modes are supported.
Configuration > Mesh Options
Enable Mesh Networking in this zone Indicates if mesh networking is enabled. Select the check box and enter the following:
  • Mesh Name (ESSID)
  • Mesh Passphrase
Configuration > Radio Options
Channel Range (2.4G) Indicates that you want to override the 2.4GHz channel range that has been configured for the zone to which this AP group belong. Select Select Channel Range (2.4G) check boxes for the channels on which you want the 2.4GHz radios of managed APs to operate. Channel options include channels 1 to 11. By default, all channels are selected.
DFS Channels Allows ZoneFlex APs to use DFS channels. Select the check box.
5.8 Ghz Channels

Provides C-band support for all Outdoor APs and the following Indoor APs: R310, R510, R710.

NOTE

This feature is available only for countries that support 5.8Ghz channel. For example, UK provides indoor AP—5.8Ghz channel support.

Select the Allow 5.8Ghz channels check box.
5.8 Ghz Channels License
Enables full TX Power Adjustment for C-band channels.
NOTE
This feature is supported only for UK.

Select the Allow 5.8Ghz channels use full power check box.

Channel Range (5G) Indoor Indicates the channels on the 5GHz radio that you want managed indoor APs to operate. Select the check boxes.
Channel Range (5G) Outdoor Indicates the channels on the 5GHz radio that you want managed outdoor APs to operate. Select the check boxes.
Radio Options b/g/n (2.4 GHz) Indicates the configuration options for the 2.4 GHz radio. Select the following options:
  • Channelization—Set the channel width used during transmission to either 20 or 40 (MHz), or select Auto to set it automatically.
  • Channel—Select the channel to use for the b/g/n (2.4GHz) radio, or select Auto to set it automatically.
  • Auto cell sizing— Select this option to enable APs to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option, disables the TX Power Adjustment configuration.
    NOTE
    This is an experimental feature in 3.6.1 release.

    Ensure that Background Scan is enabled.

  • TX Power Adjustment—Select the preferred TX power, if you want to manually configure the transmit power on the 2.4GHz radio. By default, TX power is set to Full on the 2.4GHz radio.
    NOTE
    If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the max allowable value according to the AP's capability and the operating country's regulations.
Radio Options a/n/ac (5 GHz) Indicates the configuration options for the 5 GHz radio. Select the following options:
  • Channelization—Set the channel width used during transmission to either 20, 40, 80, 80+80, 160 (MHz), or select Auto to set it automatically.
  • Channel—For Indoor and Outdoor, select the channel to use for the a/n/c (5GHz) radio, or select Auto to set it automatically.
  • Secondary Channel (80+80)—For Indoor and Outdoor, the default secondary channel to use for the a/n/c (5GHz) radio, is set as Auto.
  • Auto cell sizing— Select this option to enable APs to share information on interference seen by each other and dynamically adjust their radio Tx power and Rx parameters to minimize interference. Enabling this option, disables the TX Power Adjustment configuration.
    NOTE
    This is an experimental feature in 3.6.1 release.

    Ensure that Background Scan is enabled.

  • TX Power Adjustment—Select the preferred TX power, if you want to manually configure the transmit power on the 5GHz radio. By default, TX power is set to Full on the 5GHz radio.
    NOTE
    If you choose Min, the transmit power is set to 0dBm (1mW) per chain for 11n APs, and 2dBm per chain for 11ac APs. If you choose Max, the transmit power is set to the max allowable value according to the AP's capability and the operating country's regulations.
Configuration > AP GRE Tunnel Options
Tunnel Type

Indicates the supported tunnel type (Ruckus GRE, SoftGRE and SoftGRE+IPsec)

Choose :

  • Ruckus GRE and select the GRE Tunnel Profile.

  • SoftGRE and
    • select the GRE Tunnel Profile
    • select AAA Affinity, which is applicable only for proxy AAA.
    NOTE
    If you select AAA Affinity, you must enable Force Disassociate Client while creating the Soft GRE Profile.
  • SoftGRE+IPsec and
    • select the GRE Tunnel Profile
    • select SoftGRE+IPsec
Configuration > Syslog Options (Zone)
Enable external syslog server for APs Indicates if an external syslog server is enabled. Select the check box and enter the following details:
  • Server Address
  • Port
  • Facility for Event
  • Priority
Configuration > AP SNMP Options
Enable AP SNMP Indicates if the AP SNMP option is enabled. Select the check box.
SNMPv2 Agent Indicates if the SNMPv2 agent is enabled. If the SNMPv2 agent is enabled, configure the community settings.
  1. Click Create and enter Community.
  2. Select the required Privilege. If you select Notification enter the Target IP.
  3. Click OK.
SNMPv3 Agent Indicates SNMPv3 Agent is applied. If the SNMPv3 agent is enabled, configure the community settings.
  1. Click Create and enter User.
  2. Select the required Authentication.
  3. Enter the Auth Pass Phrase.
  4. Select the Privacy option.
  5. Select the required Privilege. If you select Notification select the option Trap or Inform and enter the Target IP and Target Port.
  6. Click OK.
DHCP Service for Wi-Fi Clients
Enable DHCP Service in this zone Enables the DHCP service for this zone. Select the check box.
Configuration > Advanced Options
Channel Mode Indicates if location-based service is enabled. If you want to allow indoor APs that belong to this zone to use wireless channels that are Channel Mode regulated as indoor-use only. Select the Allow indoor channels check box.
Auto Channel Selection Indicates auto-channel settings. Select the check box and choose the option.
Background Scan Runs a background scan. Select the respective check boxes and enter the duration in seconds:
  • Background Scanning—Changes the AP channel if there is interference.
  • ChannelFly—Continuously monitors potential throughput and changes the AP channel to minimize interference and optimize throughput.
Smart Monitor Indicates AP interval check and retry threshold settings. Select the check box and enter the duration and threshold.
AP Management VLAN Indicates the AP management VLAN settings. Choose the option. Click VLAN ID, and then type the VLAN ID that you want to assign (valid range is from 1 to 4094). To keep the same management VLAN ID that has been configured on the AP, click Keep AP's settings.
ATTENTION
For standalone APs, set the AP ethernet port to trunk before changing the AP Management VLAN settings.
Rogue AP Detection Indicates rogue AP settings. Select the check box and choose the options:
  • Enable events and alarms for all rogue devices
  • Enable events and alarms for only malicious rogue devices of selected type and select the Rogue Type:
    • SSID Spoofing
    • Same Network
    • MAC Spoofing
  • Protect the network from malicious rogue access points.
DoS Protection Indicates settings for blocking a client. Select the check box and enter the duration in seconds.
Client Load Balancing Balances the number of clients across APs. Select the check box and enter the threshold.
Band Balancing Balances the bandwidth of the clients. You can use the slider to actively control associated stations to meet certain band distribution requirements allowing for dynamic band balancing:
  • Disable: disables band balancing
  • Basic (default): during heavy load conditions, this option withholds probe and authentication responses in order to balance clients.
  • Proactive: uses the Basic configuration in addition to actively re-balancing clients.
  • Strict: uses the Proactive configuration in addition to actively re-balancing clients.
Enter the percentage of client load on the 2.4 GHz band.
Location Based Service Indicates that the location based service is enabled.
  • Select the check box and choose the options.
  • Click Create, In the Create LBS Server form:
    1. Enter the Venue Name.
    2. Enter the Server Address.
    3. Enter the Port number.
    4. Enter the Password.
Client Admission Control Indicates the load thresholds on the AP at which it will stop accepting new clients. Select the check box and update the following settings:
  • Min Client Count
  • Max Radio Load
  • Min Client Throughput
Protection Mode Indicates the mechanism to reduce frame collision. Choose one of the following options:
  • None
  • RTS/CTS
  • CTS Only
AP Reboot Timeout Indicates the AP reboot settings. Choose the required option for:
  • Reboot AP if it cannot reach default gateway after
  • Reboot AP if it cannot reach the controller after
NOTE
You can also edit, clone or delete an AP Zone by selecting the options Configure , Clone or Delete respectively, from the Access Points page.
Parent topic: Working with AP Zones
