Deploying an application control policy involves configuring a User Traffic Profile (UTP) with the policy, and then applying that profile to a WLAN.
To implement an Application Control Policy:
-
Go to
Services and Profiles > Access Control > User Traffic.
-
Click
Create. The
Create User Traffic Profile form appears.
-
Enter a
Name, and optionally a
Description for the UTP.
-
In the
Application Recognition and Control section, select an
Application Policy from the drop-down list. Alternatively, click
Create to create a new policy.
-
Click
OK to save the User Traffic Profile.
-
Go to
Wireless LANs.
-
Locate the WLAN for which you want to apply the application policy, and select it from the list.
-
Click
Configure. The
Edit WLAN [WLAN Name] form appears.
-
Expand the
Advanced Options section, and select a
User Traffic Profile you created from the drop-down list. Alternatively, click
Create to create a new UTP.
-
Click
OK to save your WLAN changes.

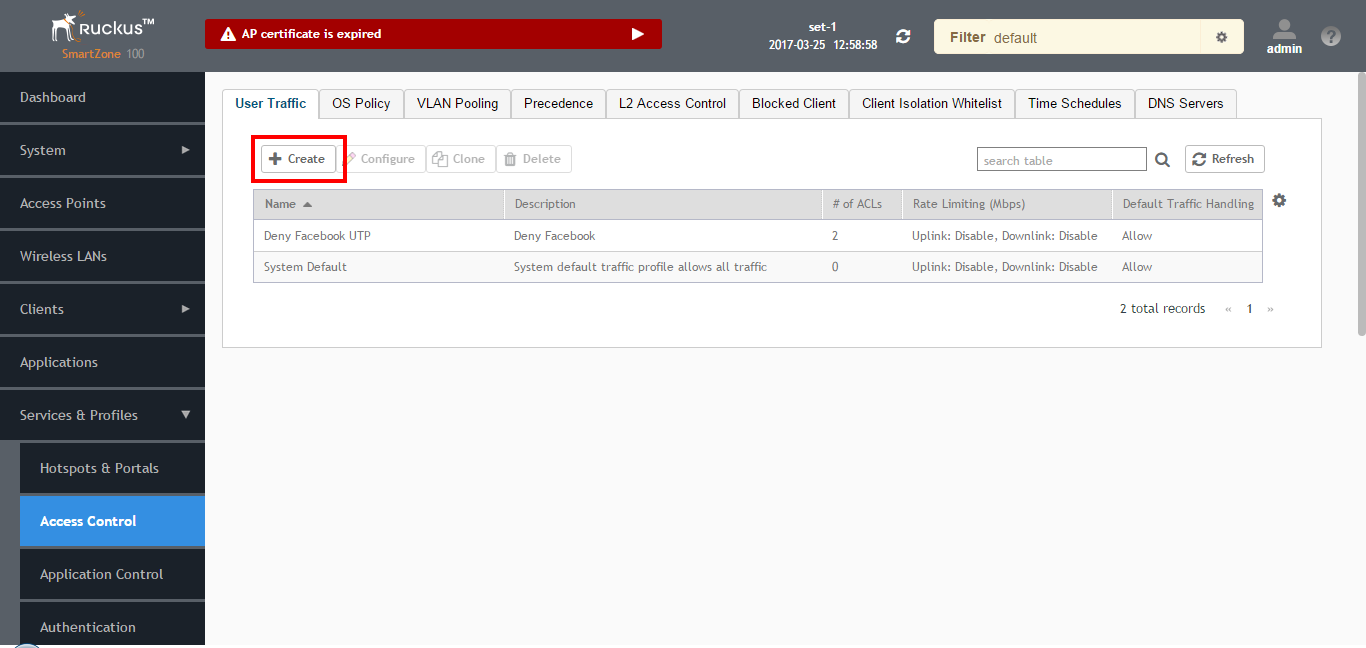

Figure 85
Create a User Traffic Profile (UTP)

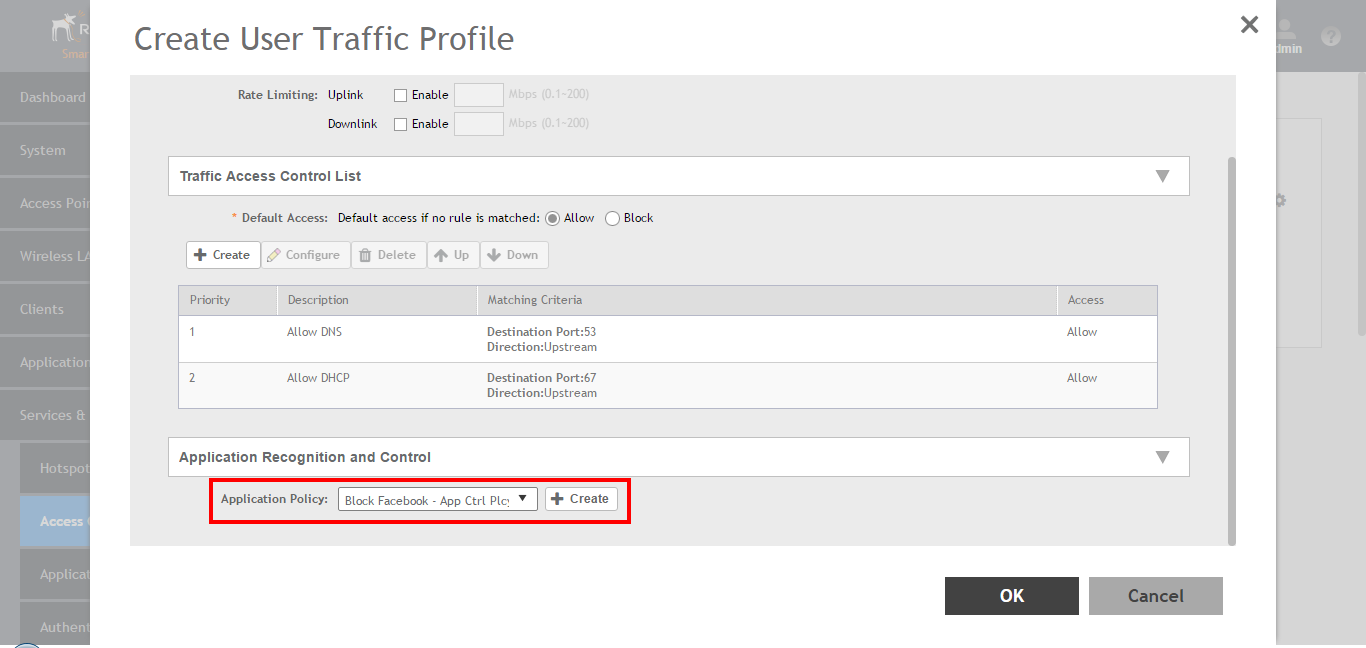

Figure 86
Select an Application Policy to apply to this UTP

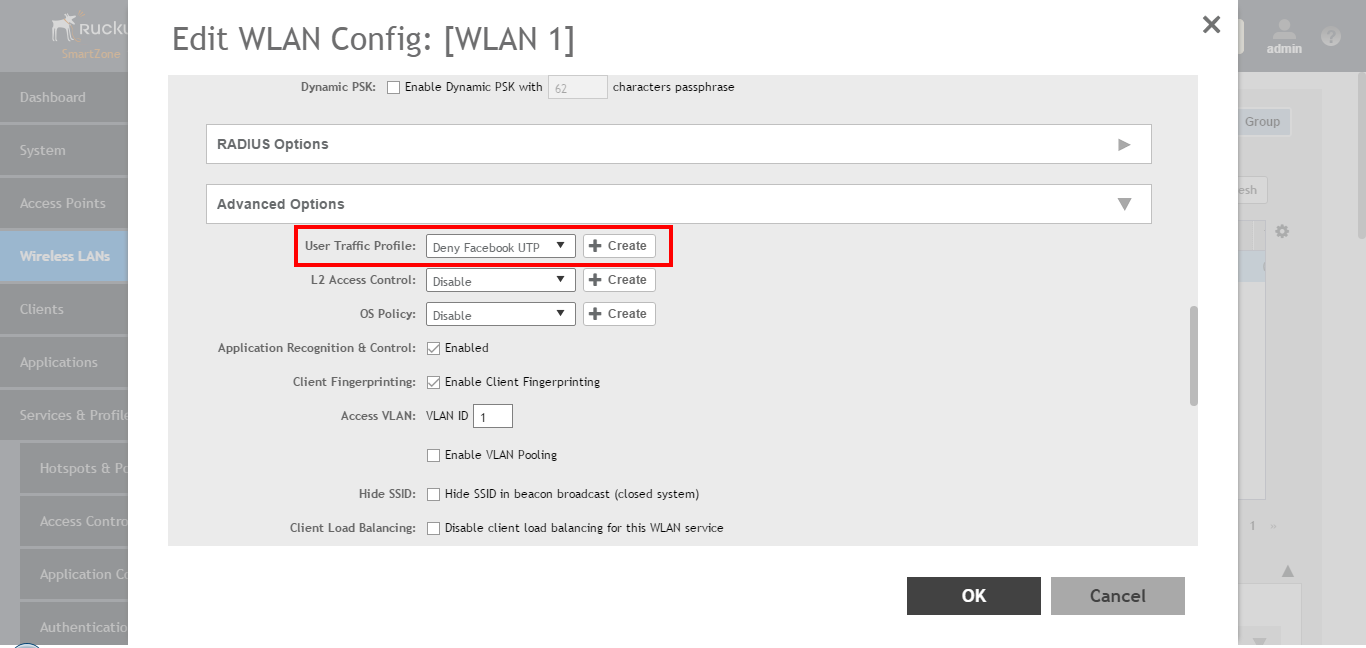

Figure 87
Apply the UTP to a WLAN
