Configuring And Monitoring AP Zones

If no tunneled WLANs exist in the zone, you can change the tunnel type from SoftGRE to GRE or GRE + UDP.

MVNO accounts are currently unsupported by SoftGRE tunnels. If you create an MVNO account and assign an AP zone that is using a SoftGRE tunnel, an error message appears.
  1. Follow the steps as described in Monitoring Domains, Zones, and AP Groups to change the tunnel type from SoftGRE.
  2. Scroll down to the AP GRE Tunnel Option section.
  3. In AP Tunnel Type, select the tunnel type to which you want to change from SoftGRE.
    If you attempt to change the tunnel type when a tunneled WLAN exists within the zone, the following error message appears:
    Unable to update the configuration of the AP zone. Reason: It is disallowed to change the tunnel type, because it
has tunneled WLAN.
  4. Click OK.
    The zone configuration information is displayed.

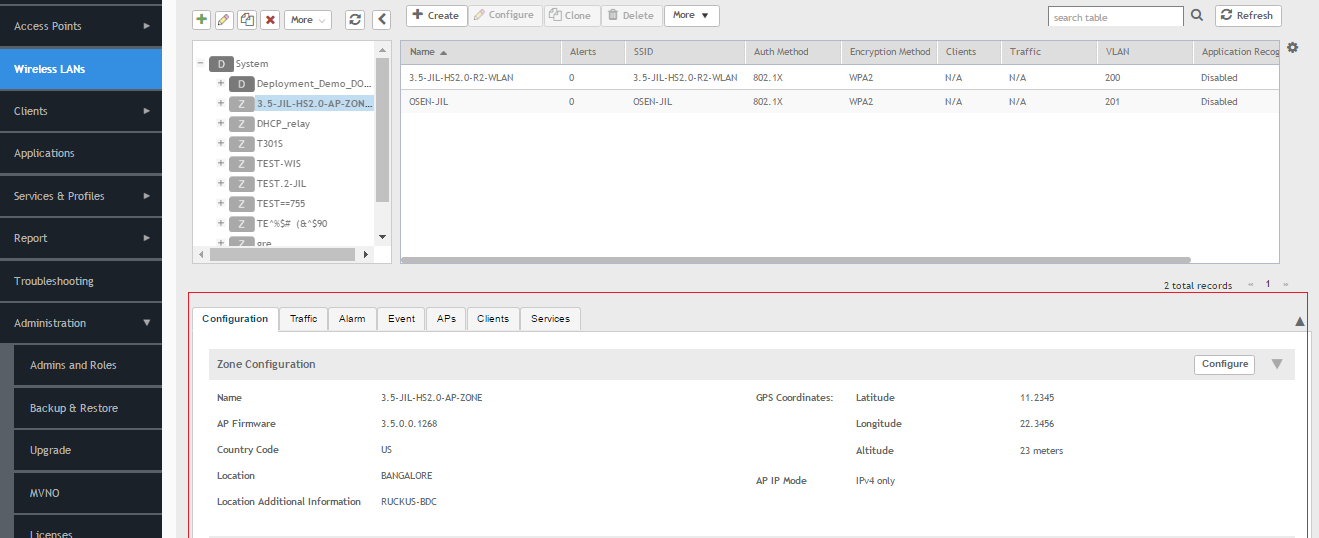

    Figure 153  Monitoring Zone Configuration

Parent topic: SoftGRE Support
