Upgrading the Data Plane

You can view and upgrade the virtual data plane version using patch files. This feature is only supported on vSZ-H and vSZ-E.

1. Select Administration > Upgrade.
2. Select the DP Patch tab.
   The DP Patch page appears.

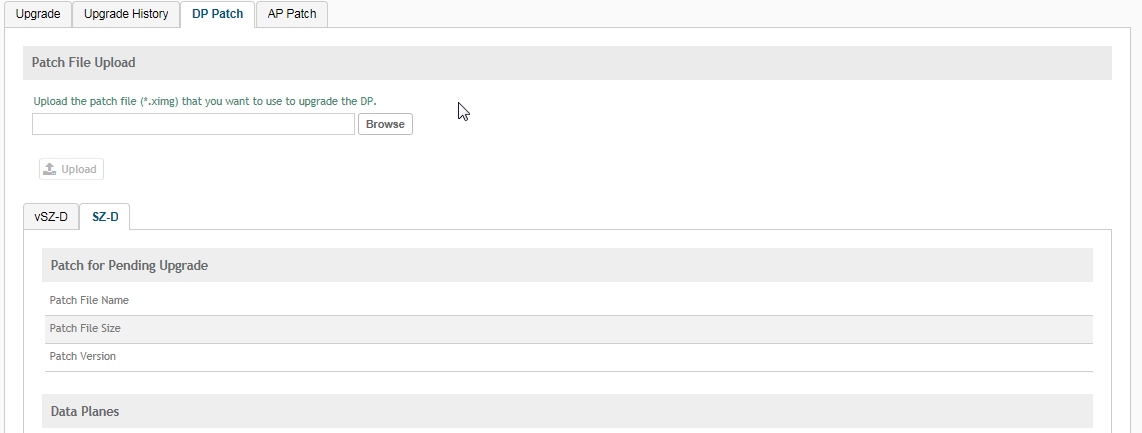

   Figure 140  Upgrading the Data Plane








3. In Patch File Upload, click Browse to select the patch file (.ximg file).
4. Click Upload.
   The controller automatically identifies the Type of DP (vSZ or Real) and switches to the specific Tab page. Uploads the file to its database, and then performs file verification. After the file is verified, the Patch for Pending Upgrade section is populated with information about the upgrade file.

   The following upgrade details are displayed:

   • Patch File Name—Displays the name of the patch file.
   • Patch File Size—Displays the size of the patch file.
   • Patch Version—Displays the version of the patch file.
5. In Data Planes, choose a patch file version from the Select upgrade version.
6. Click Apply to apply the patch file version to the virtual data plane.
   The following information about the virtual data plane is displayed after the patch file upgrade is completed.

   • Name—Displays the name of the virtual data plane.
   • DP MAC Address—Displays the MAC IP address of the data plane.
   • Firmware—Displays the version of the data plan that has been upgraded.
   • Registration State—This field displays whether all licenses pertaining to the data plane are approved.
   • Upgrade Status—Displays the completion stats of the patch file upgrade for the virtual data plane.
